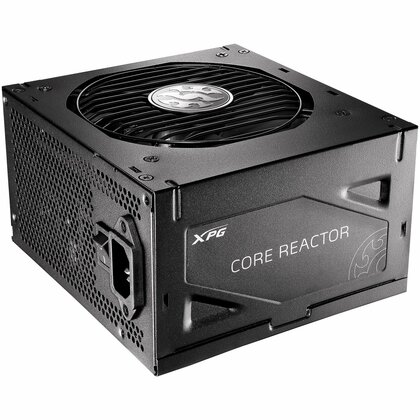

ADATA CREACTOR650G-BKCKR
The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
80 Plus Gold Certified
Compact with Modular Design
Intelligent, Low-Noise Fan-Curve
Premium 100% Japanese Capacitors
Industrial-Grade Protection
10-Year Warranty
80 Plus Gold Certified
The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load.
Cybenetics LAMBA / ETA Certified
The XPG CORE REACTOR modular power supply surpasses Cybenetics LAMBDA-A and ETA-A certification standards to meet the exacting needs of gamers for power transfer efficiency and low-noise operation.
Intelligent Fan-Curve
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.
Compact and Modular
The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.
Premium Japanese Capacitators
Equipped with All 105°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR’s DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.
Industrial-Grade Protection
The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
– Over Current Protection (OCP)
– Over Voltage Protection (OVP)
– Under Voltage Protection (UVP)
– Over Power Protection (OPP)
– Short Circuit Protection (SCP)
– Over Temperature Protection (OTP)
– No Load Operation (NLO)
– Surge & Inrush Protection (SIP)
Tech Specs
Description
Specification
Form Factor: ATX
Modular: Fully Modular
Series: Adata XPG Core Reactor
Compatability: ATX 1.42 & EPS
Wattage: 650 W
Connectors: 1 x ATX 24 Pin
2 x EPS 8 (4+4) Pin
12 x SATA
4 x Peripheral 4 Pin
4x PCI-E 6+2 Pin
AC Input: AC 100-240 V
PFC: Active PFC
Fan Type: 12cm Fluid-dynamic bearing
Intelligent low-noise fan-curve
2400 RPM
Fan Bearing: Fluid / Hydraulic Bearing
Noise: dB(A) at 20% load: 11.2
dB(A) at 50% load: 11.2
dB(A) at 100% load: 22.3
80+ Certification: 80+ Gold
Efficiency: 90%
MTBF: 100K hours
Protection: Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge & Inrush Protection (SIP)
Features: See Overview
Weight/Dimensions: 150 x 140 x 86mm
Package Weight: 3.0900 kg
Warranty: 10 Years
