BUILD YOUR DREAM SNOWY RIG

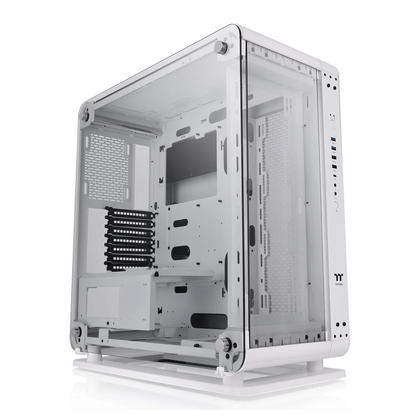

The Core P6 TG Snow Mid Tower Case is the smaller version of the Core P8 TG Full Tower Case. Just like the Core P8 TG, the Core P6 TG Snow can be transformed into a closed or open styled form effortlessly and is the newest member of the Thermaltake iconic open-frame Core Series. The Core P6 TG Snow features a fully modular design, Rotational PCI-E Slots, a PSU cover, an extra GPU bracket, support for 120mm and 140mm fans, support for 360mm and 280mm radiators, and removable filters. With all the significant features, the potential for the hardware expansion and cooling solution is remarkable for the Core P6 TG Snow. Users will enjoy the process of building in the Core P6 TG Snow Mid Tower Case and find it truly unique and innovative.
Core Chassis Specifications
Case Edition Core P6 TG
Case Form Factor Mid Tower
Motherboard Form Factor
ATX
CEB
MicroATX
Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
1 x HD Audio
2 x USB 2.0
2 x USB 3.0
1 x USB 3.2 Gen2 Type-C
Drive Bays 4 x 3.5`` / 8x 2.5`` Internal
Standard Expansion Slots 7 (Rotatable Patented Design)
Vertical Expansion Slots
Fans & Filters
Fan Bays 13 x 120mm / 8x 140mm
Fans Included None
Fan Controller/Hub
Dust Filters
Bottom
Side
Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility 1 x 120/240mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility 1 x 120/140/240/280/360mm
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 300 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
1 x Front
1 x Main Side
1 x Top
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
