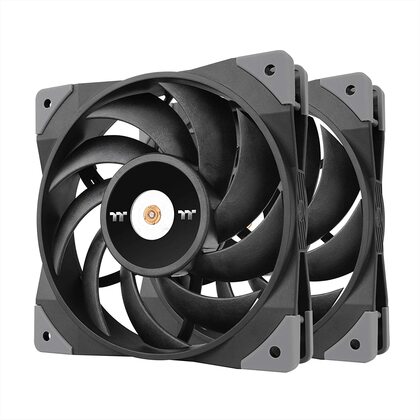

Thermaltake TOUGHFAN PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs.
- ToughFan Series
Unparalleled Cooling Performance
The TOUGHFAN is a PWM controlled fan which is designed to perform at a maximum operating speed of up to 2000 RPM allowing unparalleled cooling performance.
- Exceptional Blade Design
Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.
- Metal-Reinforced Motor Hub
The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.
- The 2nd Generation Hydraulic Bearing
The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.
- Built for Superior Cooling
The TOUGHFAN is designed for all cooling applications. It’s your perfect go to solution whether your using it as radiator fan or on a air cooler. Level up with the TOUGHFAN for superior cooling performance.
*1. Designed for all air cooling applications. (58.35CFM + 2.41mm-H2O)
*2. Best for radiator fans. (With higher static pressure than other standard cooling fans)
*3. Best for air coolers. (With higher static pressure than other standard cooling fans)
Anti-Vibration Mounting System
The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
P/N
CL-F085-PL14BL-A
FAN DIMENSION
140 x 140 x 25 mm
FAN STARTED VOLTAGE
9.0 V
FAN RATED VOLTAGE
12 V
RATED CURRENT
0.34 A (Fan x1)
RATED VOLTAGE
4.08 W (Fan x1)
POWER INPUT
PWM 500~20
