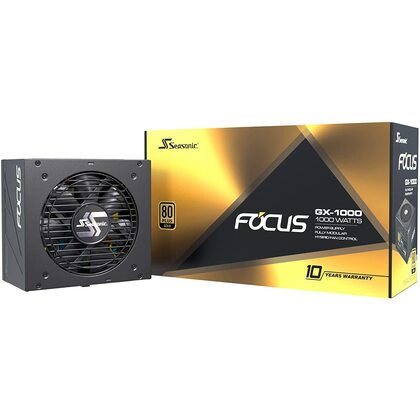

SEASONIC FOCUS GX 1000 Watt Full Modular 80+ Gold PSU/Power Supply

BRING TRUE POWER TO YOUR PC
The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.

Size ATX
Edition FOCUS GX
Wattage 1000 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 83 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 83 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
2 x 4+4-pin ATX 12V
5 x 4-pin Molex
2 x 4-Pin Molex to SATA
6 x 6+2-pin PCIe
10 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
