Description

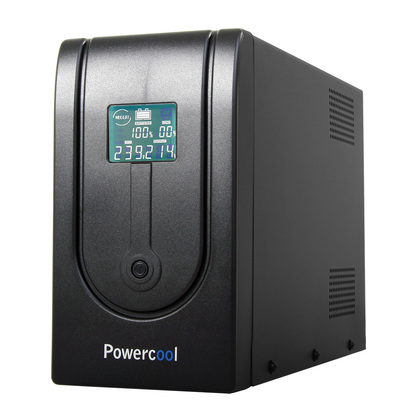

The Powercool UPS range provides stable and reliable power protection with scalable run time It is ideal for PC users or small business companies, as well as for small telecom applications. The Powercool UPS is compact and provides stable power protection against surges and spikes. Its embedded microprocessor controller guarantees high reliability. It can automatically shut down without any load and restart while AC power is recovering.
Key Features
Built in AVR
DC Cold Start
Audible Alarm
USB Connectivity
Intelligent CPU Control
Wide Input Range
Software Monitoring included (Serial # on CD Sleeve)
Compatible with generators
Strong EMI compatibility, no EMI to load
Protection against Surge, Over / Under voltage
Specifications
Power: 900W
Noise: <45db (1 metre)
Temperature: 0 - 40°C
Humidity: 20% - 90% (RH)
Input - Phase: Single + GND
Input - Voltage Range: 230 / 240VAC
Input - Frequency: 44 - 55Hz ± 1Hz / 55 - 65Hz ± 1Hz
Output - Voltage Range: 230 / 240VAC
Output - Wave Form: Sine Wave (AC Mode) Square Wave (Inverter)
Output - Frequency: 50 / 60Hz ± 1% (Battery Mode)
Output - Crest Factor: 3:1
Output - Transfer Time: <= 6ms
Protection - Energy Rating: 320 Joules instantaneous response
Protection Test Standard: IEEE 587 Cat. A + B
Protection - LAN: RJ45 Surge protection
Noise Filtering - EMI / RFI: Full time suppression
Communication: USB
I/O Ports - UK Mains Socket: Three
I/O Ports - RJ45: Two (In / Out)
I/O Ports - USB: One (For USB Monitoring)
I/O Ports - IEC Socket: Three
Battery - Type: Sealed Lead-Acid, Maintenance Free
Battery - Quantity: 12V8AH x 2
Battery - Recharge Time: 90% capacity after 8 hours
Battery - Backup time: 15-20 minutes (dependent on load)
General Specifications
Manufacturer Part Number: PC 1500VA
EAN Number: 5055492403117
Has Mains Plug: Yes
Colour: Black
What`s In The Box: UPS
Mains Cable (IEC C13 to IEC C14)
USB Cable (A to B)
Software - UPSmart 2000I (Seria
