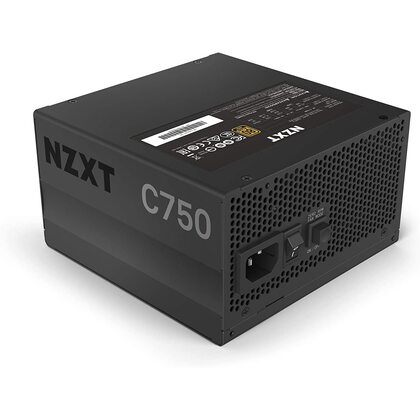

C-SERIES C750 750W 80+ GOLD FULLY-MODULAR POWER SUPPLY
The new C Series power supply from NZXT features safe, reliable power while ensuring optimal efficiency and quieter performance. Manufactured with high-quality components and backed by a 10-year warranty, the C Series power supplies deliver both peace of mind and clean, reliable power to your PC gaming system.
- SILENT OPERATION
A push of a button enables Zero RPM Fan mode, silencing the fan under low-load conditions. When needed, the 120mm fluid-dynamic bearing fan spins up to efficiently cool the PSU, keeping your system stable and running through even the most intense gaming session. Hybrid Silent Fan Control and the Fluid Dynamic Fan Bearing not only provide reduced noise without an increase in temperature, they also extend fan life due to a reduction in fan rotations.
- ALL THE ESSENTIALS
The C series fits any case conforming to the ATX standard with the C750 and C650 supporting NVIDIA GPUs up to 2080ti and AMD GPUs up to Vega 64. The C850 can support multi-GPU configurations.
- DESIGNED FOR BUILDERS
The modular design lets you use only the cables you need, ensuring easier installation, and less clutter. The sleeved main cables look great and resist heat damage as well as fraying, delivering greater durability and longevity.
- PEACE OF MIND
NZXT provides a 10-year warranty for the C Series PSU, so you can enjoy a worry-free gaming experience.
- SPECIFICATIONS
Dimensions (LxWxH) - 150mm x 150mm x 86mm
Weight - 3.1kg
Materials - Steel, PCB, Plastic
Compliance Standard - ATX12V v2.4 / EPS12V v2.9 2
PF Correction - Active@0.99
AC Input Rating - 100-240Vac, 10-5A , 50-60Hz
DC Output Rating - +3.3V +5V +12V -12V +5Vsb
20A 20A 62A 0.3A 3A
100W 744W 3.6W 15W
750W
Fan Dimensions (WxHxD) - 120mm x 120mm x 25mm
Fan Speed - 0-2 , 2 0 0 ± 220 RPM
Fan Airflow - 73.9 CFM
Fan Noise - 32.3 dBA
Fan Bearing - FDB (Fluid Dynamic Bearing)
Hazardous Materials - RoHS & China RoHS
Energy Efficiency - 80 Plus Gold
20% loading: 87%, 50% loading: 90%, 100% loading: 87% @115Vac
Operation Temperature - 0 to 50°C
Regulation & Certificate (EMC & Safety) - CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC
MTBF - 100,000 hours
Connectors - 1x 24-pin ATX power
1x 4+4-pin CPU power
4x PCIe (6+2 pin)
8x SATA
6 x Peripherals
Included Cables - 1x 24-pin ATX power (length:610mm, Nylon sleeving)
1x 4+4-pin CPU power (length:650mm, Nylon sleeving)
2x PCIe (6+2 pin) (length:675 +75mm, Nylon sleeving)
2x SATA (length: 500 + 100 + 100 + 100mm)
2x Peripherals (length: 500 + 100 + 100mm)
Manufacturers Warranty - 10 Years
