Key Specifications
Chipset Radeon RX 6900 XT

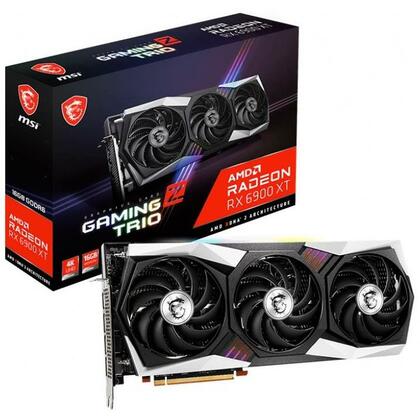

Edition Radeon RX 6900 XT GAMING Z TRIO 16G
Manufacturing Process
Microarchitecture RDNA 2
Cores & Clocks
Streams 5120
Core Clock 2235 MHz
Boost Clock 2425 MHz
Video Memory (VRAM)
Memory Size 16GB
Memory Type GDDR6
Memory Clock 16000 MHz
Memory Speed (Effective with DDR)
Memory Bus 256 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Cooler Design MSI TRI FROZR
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16)
Connectivity
3 x DisplayPort 1.4
1 x HDMI
Visuals
AMD CrossFire Support
AMD Freesync Support No
AMD FreeSync Version
HDR Support No
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 @ 60Hz (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 3 x 8-pin PCIe
Graphics Card TDP/Power 300 W
Minimum Recommended PSU 850 W
Maximum GPU Temperature
Physical
Width 2.9 Slot
Low Profile Support
Dimensions 324 x 141 x 55 mm
Package Type Retail
