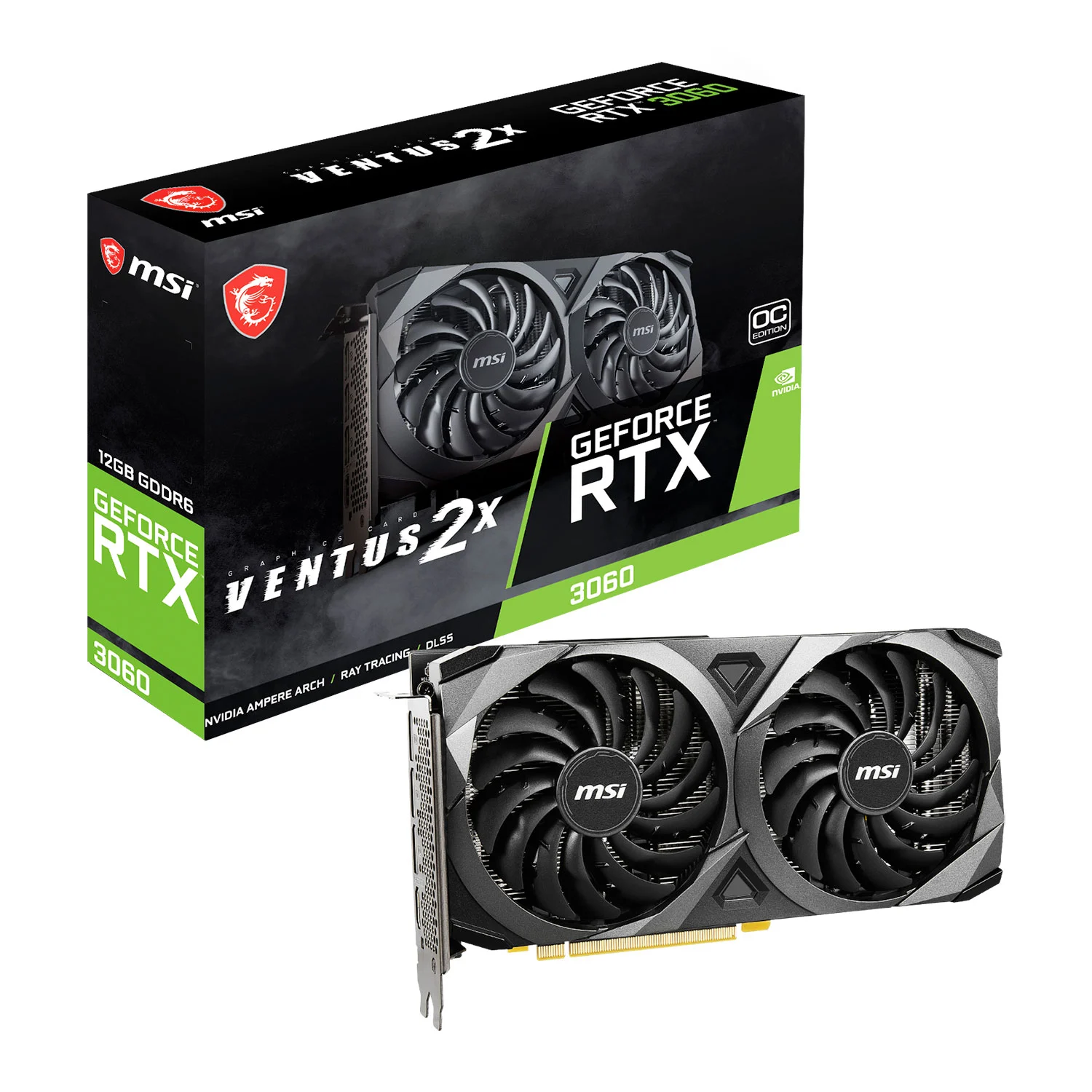

Experience the MSI NVIDIA® GeForce® RTX™ 3060 VENTUS 2X OC that delivers a superior performance that gamers crave. Powered by the all-new NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. A trusted dual fan arrangement is laid into a rigid industrial design, allowing this sharp looking graphics card fit into any system build. A tailored PCB Design provides greater reliability and enhanced power circuitry for pushing the card to its limits. VENTUS represents completing the task at hand, are you ready?
ALL THE REINFORCEMENT YOU NEED

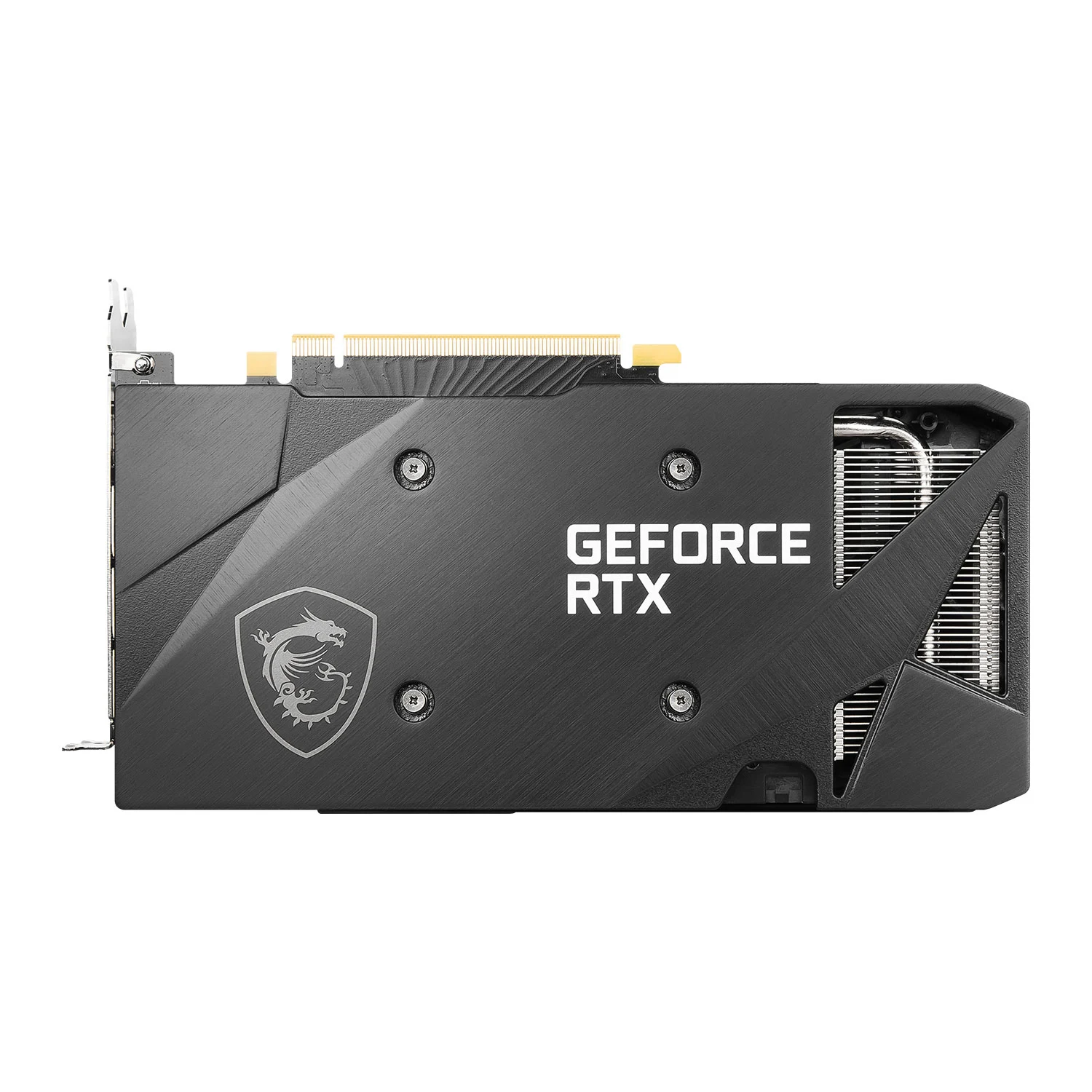

Be prepared for battle with the MSI RTX™ 3060 VENTUS 2X OC graphics card, which features a strong but lightweight composite Graphene backplate. This design reinforces the length of the graphics card while providing passive thermal conduction properties.
Chipset GeForce RTX 3060
Edition VENTUS 2X OC
Manufacturing process 8 nm
Microarchitecture Ampere
Cores & Clocks
Cores 3584
Core Clock 1320 MHz
Boost Clock 1807 MHz
Video Memory (VRAM)
Memory Size 12GB
Memory Type GDDR6
Memory Clock 15000 MHz
Memory Bus 192 Bit
Cooling
Cooling Solution Dual Fan (2)
Cooler Design MSI VENTUS Dual Fan Cooler
Conectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
3 x DisplayPort 1.4
1 x HDMI 2.1
Ray-Tracing
Real-Time Ray Tracing Yes
Power & Thermals
Graphics Card Power Connectors 1 x 8-pin PCIe
Graphics Card TDP/Power 170W
Minimum Recommended PSU 550 W
Maximum GPU Temperature 93 °C
Width Dual Slot
Dimensions 235 x 124 x 42 mm
Package Type Retail
