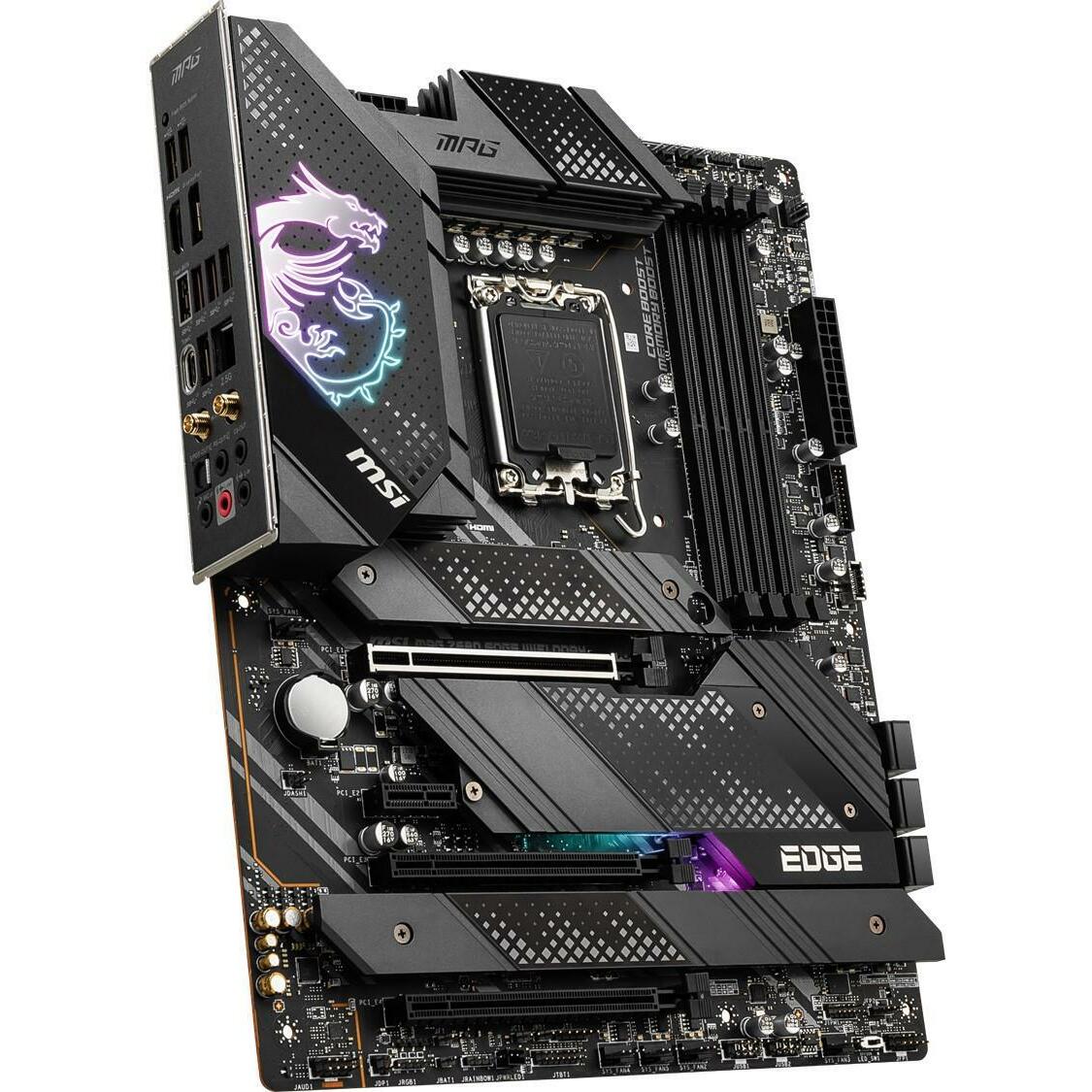

SPECIFICATION:
CPU LGA1700 socket: Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Chipset Intel Z690
Memory 4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 5200+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
PCI Slots 3x PCIe x16 slots
PCI_E1 (from CPU)
Supports up to PCIe 5.0 x16
PCI_E3 & PCI_E4 (from Z690 chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from Z690 chipset)
Storage Total supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
SATA5-8 (From Z690 Chipset)
SATAA-B (From ASMedia ASM1061)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Networking 1x Intel® I225V 2.5Gbps LAN controller
Intel® Wi-Fi 6
Bluetooth 5.2
Audio Realtek® ALC4080Codec
Connectivity Rear:
DisplayPort
2.5G LAN
Wi-Fi/Bluetooth
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF Out
Internal
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Internal Ports 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
1x
