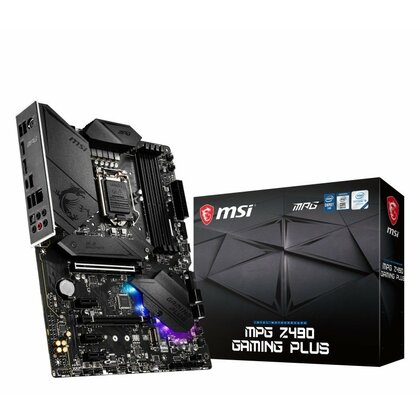

MSI MPG Z490 GAMING PLUS ATX Motherboard
ENHANCED POWER DESIGN
12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users
EXTREME STABILITY + COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores` processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed with MSI motherboards. Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
Technical Specification
MSI MPG Z490 GAMING PLUS ATX Motherboard
General
Product Type Motherboard - ATX
Chipset Type Intel Z490
Processor Socket LGA1200 Socket
Max Processors Qty 1
Compatible Processors Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4800 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC1200-VD1
Compliant Standards High Definition Audio
LAN
Network Controller Realtek RTL8125B-CG
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 3 x PCIe x1 ¦ 1 x PCIe 3.0 x16 (x4 mode)
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1
RAID Features Intel Smart Response Technology
Interfaces 2 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2
Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features MSI ClickBIOS 5
Hardware Features AMD CrossFireX technology support, MSI Audio Boost, 6 Layer PCB, Turbo M.2, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, 12+1+1 Phase Power Design, pre-mounted I/O shield, MSI Core Boost, Extended Heatsink Design
Miscellaneous
Included Accessories Case badge
Cables Included 2 x Serial ATA cable
Software Included Drivers + Utilities
Width 30.5 cm
Depth 24.4 cm
Manufacturer Warranty
3 Year Manufacturer Warranty
