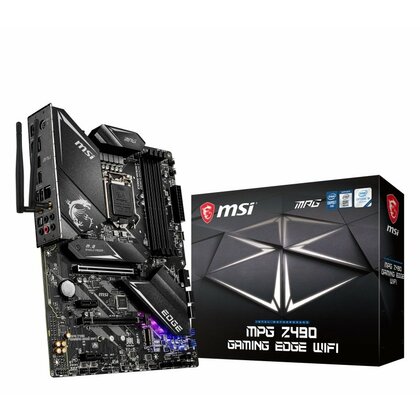

MPG Z490 GAMING EDGE WIFI (SOCKET LGA 1200) DDR4 ATX MOTHERBOARD
SPECIFICATION:
CPU Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset Intel® Z490 Chipset
Memory 4 x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
PCI Slots 1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (x4 mode, from PCH)
2x PCIe x1 slots (from PCH)
Storage 6x SATA 6Gb/s ports
2x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot supports 2242/ 2260 /2280 storage devices
Intel® Optane™ Memory Ready
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
Networking Realtek® RTL8125B-CG 2.5G LAN Controller
Intel® AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified
Supports Bluetooth® 5.1 , FIPS, FISMA
Audio Realtek® ALC1200-VD1 Codec 7.1-Channel High Definition Audio

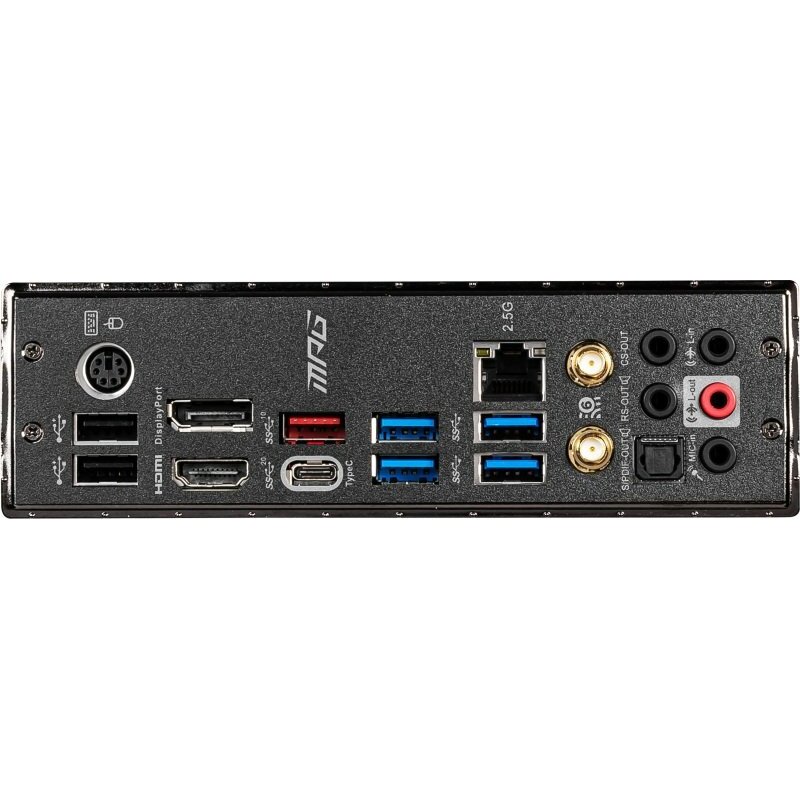

Connectivity 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
2x USB 2.0 ports on the back panel
4x USB 2.0 ports available through the internal USB connectors, hub-GL850G
ASMedia® ASM3241
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel)
Internal Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 4-pin CPU fan connector
1x 4-pin water pump connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x chassis intrusion connector
1x Clear CMOS jumper
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x TBT connector
1x RTD3 connector
Form Factor ATX Form Factor - 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty Three Year Manufacturer Warranty
