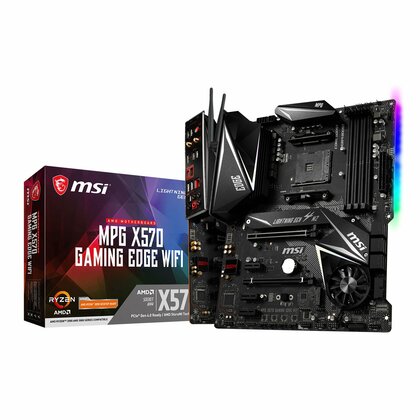

MPG X570 GAMING EDGE WIFI (AMD AM4) DDR4 X570 Chipset ATX Motherboard
The MSI MPG X570 GAMING EDGE WIFI is equipped to support AMD’s ‘Zen 2’, the 3rd generation of the Ryzen Processor family.< /br> The chipset features PCIe Gen 4, giving you plenty of headroom for high speed solid state drives and supported PCIe Gen 4 graphics cards, native USB 3.1 Gen 2 ports and an overall more powerful chipset. The chipset uses active on board cooling, through the use of a mini heatsink and fan, or direct contact heat pipes (dependent on manufacturer), to ensure constant cooling delivering consistent and ultimate performance.
The Features of theMSI MPG X570 GAMING EDGE WIFI at a Glance:
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors
Supports 4 DIMMs, Dual Channel Memory DDR4
Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost.
AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface.
Specification:
Format:
ATX
Chipset:
AMD X570
Socket:
AM4 (Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4)
RAM:
4x DDR4 (1866/ 2133/ 2400/ 2666Mhz)
Slots (with a 3000- series Ryzen CPU):
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
3x PCIe 3.0 x1 slots
Internal Connectors:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Serial port connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LEDs
External Connections:Keyboard / Mouse
Wireless / Bluetooth
USB 3.2 Gen1 Type-A
LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen2 Type-A + C
USB 3.2 Gen2 Type-A
Optical S/PDIF out
WiFi + Bluetooth:
Intel® Dual Band Wireless-AC 3168
Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps
Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
The Wireless module is pre-install in the M2_3 (Key-E) slot
li>Audio:
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
