- GAME IN STYLE

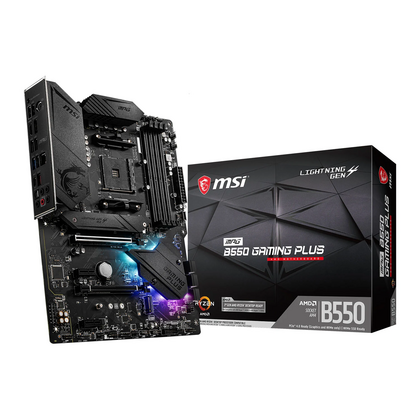

Introducing the all new MPG B550 Gaming PLUS Motherboard from MSI. Express yourself with the latest addition to the MPG series of motherboards. The MPG B550 Gaming PLUS supports 3rd Gen AMD Ryzen Processors and with the addition of PCIe 4.0 technology you can expect a lightning fast gaming experience. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications and with MSI Mystic Light gain access to 16.8 million colours and 29 different LED effects, transform your equipment to be the center of attention and top competetitive leaderboards in style.
MSI MPG B550 GAMING PLUS ATX MOTHERBOARD SPECIFICATIONS
Brand MSI
Model MPG B550 Gaming Plus
CPU AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G
Chipset AMD B550
Socket AM4 Socket
Memory 4 x DIMM, Max. 128GB, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Onoboard Graphics Outputs 1 x DisplayPort
1 x HDMI
Multi-GPU Support AMD 2-Way CrossFireX™ Technology
PCIe Slots 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1 x PCIe 3.0 x 16 slot (PCI_E3), supports x 4 speed
2 x PCIe 3.0 x 1 slots
Storage 6 x SATA 6Gb/s ports
2 x M.2 slots (Key M)
-M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
-M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage device
Networking Realtek® RTL8111H 1Gb LAN controller
Audio Realtek® ALC892 codec
High Definition Audio 7.1-channel
Supports S/PDIF output
De-pop technology
Connectivity AMD B550 Chipset
3 x USB 3.2 Gen 1 5Gbps ports
(1 x Type-C internal connector, and 2 x ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
8 x USB 2.0 ports
(4 x Type-A ports on the back panel, 4 x ports through the internal USB 2.0 connectors)
AMD Processor
2 x USB 3.2 Gen 2 10Gbps ports
(1 x Type-C port and 1 x Type-A port on the back panel)
2 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 xTPM module connector
1 x Clear CMOS jumper
Back Panel Ports 1 x PS/2 combo port
1 x USB 3.2 Gen 2 (Type A)
1 x LAN port
5 x HD Audio connectors
2 x USB 2.0 ports
1 x HDMI port
1 x DisplayPort
1 x USB 3.2 Gen 2 (Type C)
2 x USB 3.2 Gen 1 (Type A)
1 x Optical S/PDIF OUT
Form Factor ATX Form Factor
12” x 9.6”
305mm x 244mm
Mounting 9 x mounting holes
Operating System Support for Windows 10 64-bit
Warranty Three-year manufacturer warranty
Box Contents 1 x MSI MPG B550Gaming Plus ATX Motherboard
1 x User manual
1 x Quick installation guide
1 x MSI case badge
1 x Product registration card
1 x MSI product catalogue
1 x Promotion card
2 x SATA cables
1 x Case screw guide
1 x Driver DVD
