PRODUCT INFORMATION:

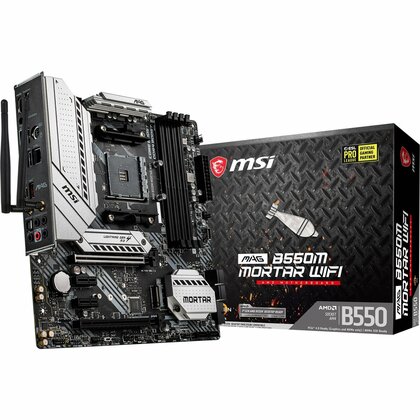

MAG B550M MORTAR WIFI (AMD AM4) B550 MICRO-ATX MOTHERBOARD
SPECIFICATION:
CPU AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G
Chipset AMD B550
Memory 4 x DIMM, Max. 128GB, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Onboard Graphics Outputs 1 x DisplayPort
1 x HDMI
PCI Slots 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2x PCIe 3.0 x1 slots
Storage 6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Networking 1x Realtek® RTL8125B 2.5Gbps LAN controller
Intel® Wi-Fi 6 AX200, Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.1
Audio Realtek® ALC1200 codec High Definition Audio 7.1-channel
Connectivity AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
Form Factor Micro-ATX Form Factor - 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
