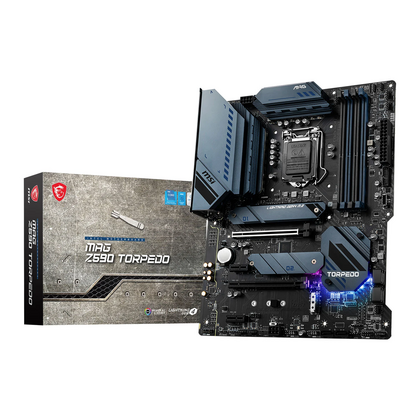

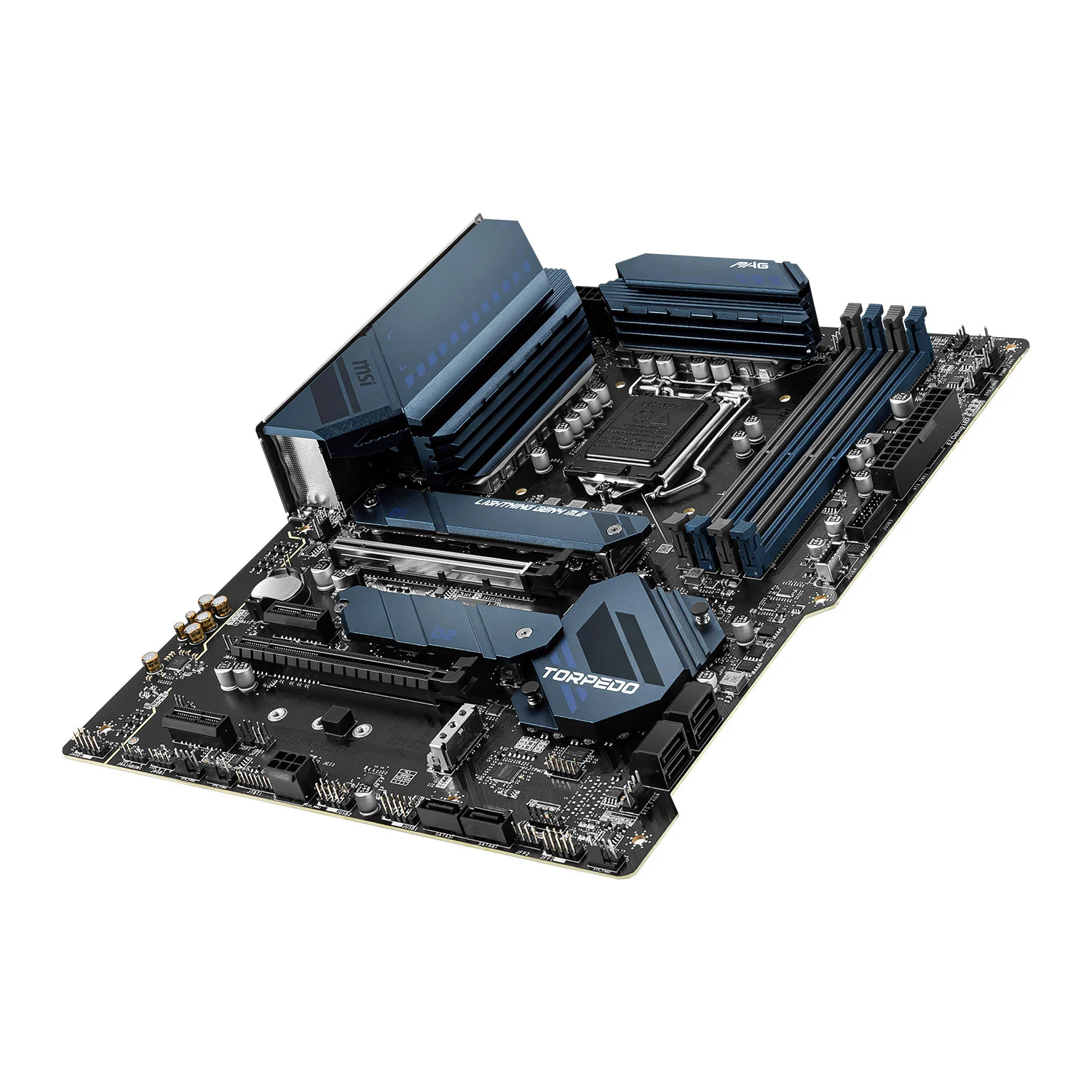

MSI MAG Z590 TORPEDO ATX Motherboard
General
Product Type Motherboard - ATX
Chipset Type Intel Z590
Processor Socket LGA1200 Socket
Max Processors Qty 1
Compatible Processors (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron)
Expansion / Connectivity
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2
RAID Features Intel Smart Response Technology
Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out - mini-jack
Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin PCI Express power connector
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1
Features
BIOS Features MSI ClickBIOS 5
Hardware Features Digital PWM, AMD CrossFireX technology support, MSI Mystic Light, MSI Steel Armor, Intel Optane Memory Ready, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI Audio Boost 5
Miscellaneous
Included Accessories Case badge, 3 x M.2 screws, 3 x standoff for M.2 socket, USB drive, MAG stickers
Cables Included 2 x Serial ATA cable
Compliant Standards DisplayPort 1.4
Width 30.5 cm
Depth 24.4 cm
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4400 MHz (O.C.), 4700 MHz (O.C.), 3200 MHz, 5333 MHz (O.C.)
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
