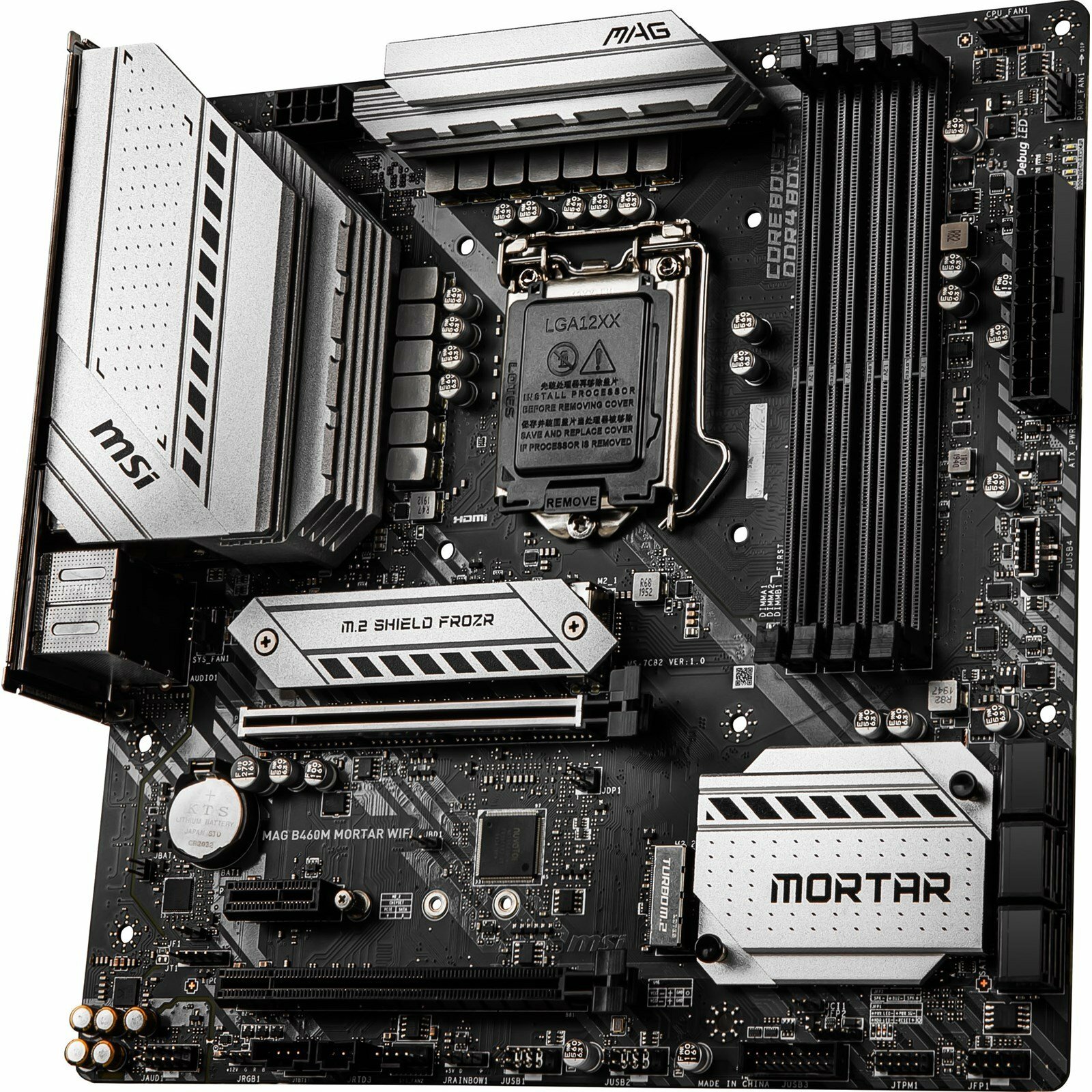

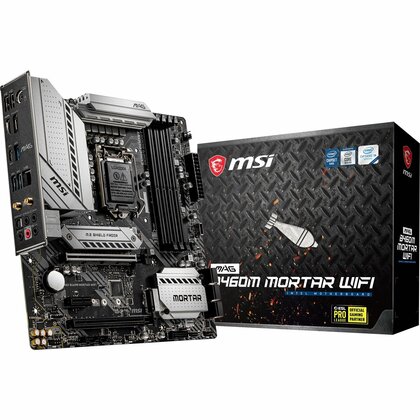

MSI MAG Intel B460M MORTAR WIFI Micro-ATX Motherboard
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
Thermal Solution for more Cores and Higher Performance
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
Faster and Undistorted Current Delivery
Core Boost technology combines MSI's premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI B460 motherboards are optimized to maximise the performance on the 10th Gen Intel ® Core™ processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.
Fortify your System with PCI-E Steel Armour
The MAG B460M MORTAR supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
Features
Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933 MHz(Max)
Enhanced Power Design: 12+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality
Technical Specification
MSI MAG Intel B460M MORTAR WIFI Micro-ATX Motherboard
General
Product Type Motherboard - micro ATX
Chipset Type Intel B460
Processor Socket LGA1200 Socket
Max Processors Qty 1
Compatible Processors (supports 10th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2666 MHz, 2933 MHz
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC1200
Compliant Standards High Definition Audio
LAN
Network Controller Realtek RTL8125B / Intel AX200
Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1
Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode)
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2
RAID Features Intel Smart Response Technology
Interfaces 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x USB-C Gen1 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack
Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type AMI
BIOS Features Multilingual BIOS, UEFI BIOS, MSI ClickBIOS 5, SMBIOS 3.2 support, ACPI 6.2 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer
Hardware Features MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, 12+1+1 Phase Power Design, pre-mounted I/O shield, MSI Core Boost
Miscellaneous
Included Accessories 2 aerials, case badge
Cables Included 2 x Serial ATA cable
Software Included Drivers & Utilities
Width 24.3 cm
Depth 24.3 cm
