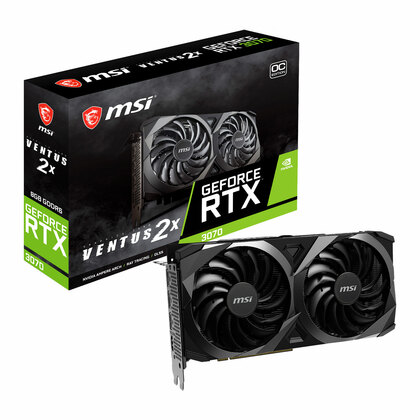

The GeForce RTX™ 3070 is powered by Ampere-NVIDIA`s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games.
Key Specifications
Chipset GeForce RTX 3070
Edition VENTUS 2X OC
Manufacturing process 8 nm
Microarchitecture Ampere
Cores + Clocks
Cores 5888
Core Clock 1500 MHz
Boost Clock 1755 MHz
Video Memory (VRAM)
Memory Size 8GB
Memory Type GDDR6
Memory Clock 14000 MHz
Memory Bus 256 Bit
Cooling
Cooling Solution Dual Fan (2)
Cooler Design MSI VENTUS Dual Fan Cooler
Included/Fitted Backplate Yes
I/O + Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
3 x DisplayPort 1.4a
1 x HDMI 2.1
Visuals
GeForce VR Ready Yes
Multi-Way Graphics Support Not Supported
Microsoft DirectX Support 12 API
HDCP Ready Yes
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Ray-Tracing
Real-Time Ray Tracing Yes
NVIDIA RT Cores 46
NVIDIA Tensor Cores 184
RTX-OPS
Rays Cast
Power + Thermals
Graphics Card Power Connectors 2 x 8-pin PCIe
Graphics Card TDP/Power 220W
Minimum Recommended PSU 650 W
Maximum GPU Temperature 93 °C
Physical
Width 2.5 Slot
Low Profile Compatible No
Low Profile Support N/A
Dimensions 232 x 124 x 52 mm
Package Type Retail Boxed
