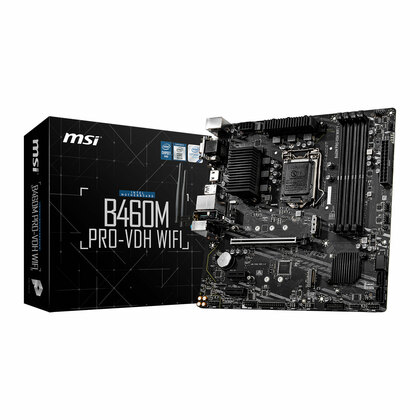

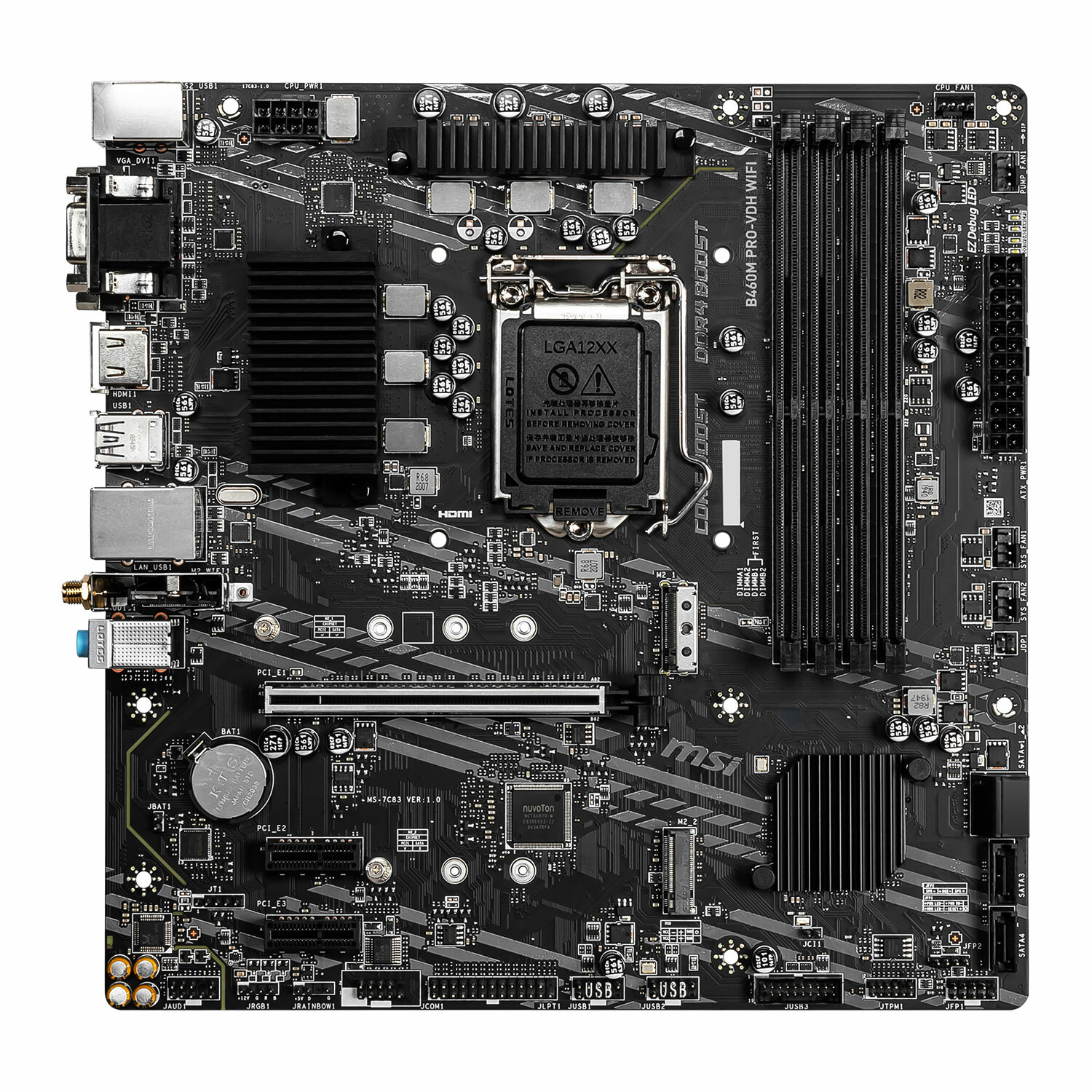

B460M PRO-VDH (Wi-Fi) 10th Generation Intel M-ATX Motherboard from MSI
- UNMATCHED EFFICIENCY WITH PRO SERIES
Introducing the all new B460M PRO-VDH (Wi-Fi) Motherboard from MSI. PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- CORE BOOST TECHNOLOGY
With premium layout design, that is ready for unleashing the maximum performance.
- WI-FI
Delivering AC speeds up to 433Mbps with lower CPU loading and a longer lifespan
- AUDIO BOOST
Reward your ears with studio grade sound quality for the most immersive gaming experience.
- PCIE STEEL ARMOR
Protecting VGA cards against bending and EMI for better performance, stability and strength.
- M.2 SHIELD FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- DDR4 BOOST
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.
PRODUCT INFORMATION:
B460M PRO-VDH WIFI (SOCKET LGA 1200) DDR4 MICRO-ATX MOTHERBOARD
SPECIFICATION:
CPU Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset Intel® B460
Memory 4x DDR4 memory slots, support up to 128GB
Intel® Core™ i7/i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 (Below)
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
PCI Slots 1x PCIe 3.0 x16 slot (from CPU)
2x PCIe x1 slots (from PCH)
Storage 4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 an
