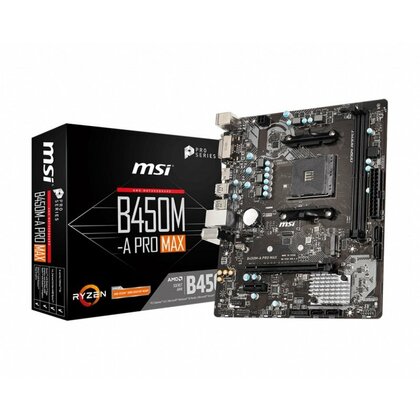

MSI AMD B450M-A PRO MAX AM4 mATX Motherboard
- Features
Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 4133 (OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Audio Boost: Reward your ears with studio grade sound quality.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DIY FRIENDLY
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
- ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
- IN-STUDIO ADVANTAGE
MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.
- EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes
- Technical Specification
MSI AMD B450M-A PRO MAX AM4 mATX Motherboard
Motherboard Size - micro ATX
Chipset Type: AMD B450
Processor Socket: Socket AM4
Max Processors Qty: 1
Compatible Processors
Athlon, Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics)
Supported RAM: Max Size:32 GB
Technology: DDR4
Bus Clock: 2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 3066 MHz (O.C.)
Features
- Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
- Intergrated Graphics (CPU with Vega Required)
Max Allocated RAM Size: 2048 MB
- Audio Type:
HD Audio (8-channel)
Audio Codec
Realtek ALC892Compliant Standards
High Definition Audio
- LAN
Network Controller: Realtek RTL8111H
Network Interfaces: Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 1 x PCIe 2.0 x1
- Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
- Interfaces
1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack
- Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
- Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
- Hardware Features
MSI Audio Boost, Debug LED, Turbo M.2, MSI Core Boost
Miscellaneous
- Included Accessories
I/O back cover
- Cables Included
2 x Serial ATA cable
- Software Included
MSI X-BOOST
- Dimentions
Width: 23.6 cm
Depth: 20 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
