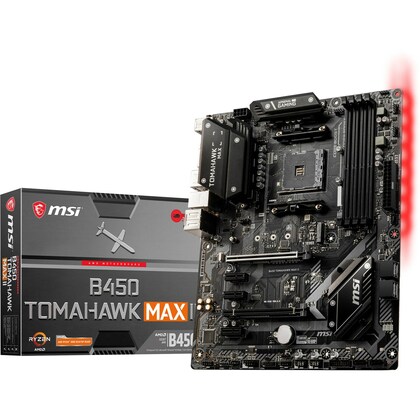

MSI B450 TOMAHAWK MAX II AMD ATX Motherboard
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Socket - AM4
CPU (Max Support) - RYZEN 9
Chipset - AMD® B450 Chipset
Memory Channel - Dual
DIMM Slots - 4
Max Memory (GB) - 128
PCI-E x16 - 2
PCI-E Gen - Gen3(PCI_E1), Gen2(PCI_E4)
PCI-E x1 - 3
SATAIII - 6
M.2 Slot - 1
RAID - 0/1/10
TPM (header) - 1
LAN - 1x Realtek® 8111H Gigabit LAN controller
USB 3.2 ports (Front) - 2(Gen1, Type A)
USB 3.2 ports (Rear) - 1(Gen2, Type C), 1(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 ports (Front) - 4
USB 2.0 ports (Rear) - 2
Serial ports(Front) - 1
Audio ports (Rear) - Realtek® ALC892/ALC897 Codec
DVI-D - 1
HDMI - 1
DirectX - 12
Form Factor - ATX
CrossFire - Y
