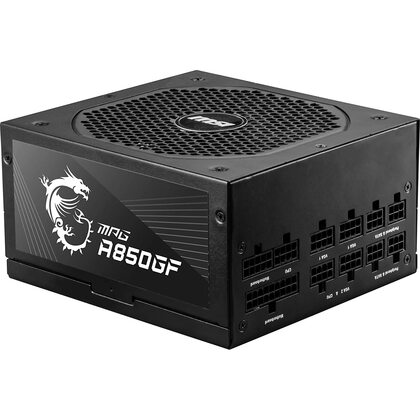

MSI MPG A850GF 850W Modular 80+ Gold PSU
GPU Support
The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30 Series GPUs. Prepared for the highest of requirements, the MPG power supply's IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
TRUSTWORTHY AND EFFICIENT
The MPG gaming power supply is proudly backed by a 10-year limited warranty, guaranteeing long term reliable operation.
100% Japanese 105° C Capacitors
Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.
Only What You Need
Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply's fully modular design, it means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build.
All The More Organized
All of the MPG gaming power supply's cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.
Feels Right At Home
The MPG gaming power supply's 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.
SILENCE WITHOUT DURABILITY COMPROMISE
The MPG gaming power supply performs quietly at 22dB and enjoys superb durability thanks to its FDB fan that has a longer lifespan than sleeve bearing fans.
*This content is for information purposes only. Actual results may vary.
ALLOY COPPER CONNECTOR TERMINALS
The MPG gaming power supply's CPU, VGA, and MB connectors utilize alloy copper terminals that can withstand higher current ratings than traditional phosphor bronze cable terminals.
Main Features
Supports the NVIDIA GeForce RTX 30 Series GPUs
Full modular cable design
Flat cable equipment
10-year warranty
80 Plus Gold certified for high efficiency
100% all Japanese 105 degrees C capacitor
Active PFC design
Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP
LLC Half Bridge Topology with DC-DC module design
Technical Specification
MSI MPG A850GF 850W Modular 80+ Gold PSU
General
Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V / EPS12V
PSU Form Factor ATX
Power Device
Input Voltage AC 100-240 V
Frequency Required 47 - 63 Hz
Power Output Connectors Details 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage +3.3, +5, ±12 V
Power Capacity 850 Watt
Output Current +3.3V - 22 A ¦ +5V - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12VMBPH - 25 A ¦ +12VCPU - 25 A ¦ +12VVGA1 - 40 A ¦ +12VVGA2 - 40 A
Efficiency 90%
Modular Cable Management Yes
80 PLUS Certification 80 PLUS Gold
Miscellaneous
Cooling System 140 mm fan
Features Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, LLC Half Bridge Topology
Manufacturer Warranty
Service & Support Limited warranty - 10 years
Dimensions & Weight
Width 15 cm
Depth 16 cm
Height 8.6 cm
Weight 3.15 kg
Dimensions & Weight (Shipping)
Shipping Weight 3.29 kg
