Kingston`s NV1 NVMe™ PCIe SSD is a substantial storage solution that offers read/write1 speeds of up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat and quicker loading times. The efficient performance and single-sided M.2 2280 (22x80mm) design make NV1 ideal for thin notebooks and systems with limited space.
Available in capacities from 500GB - 2TB2 to give you all the space you need for applications, documents, photos, videos and more.

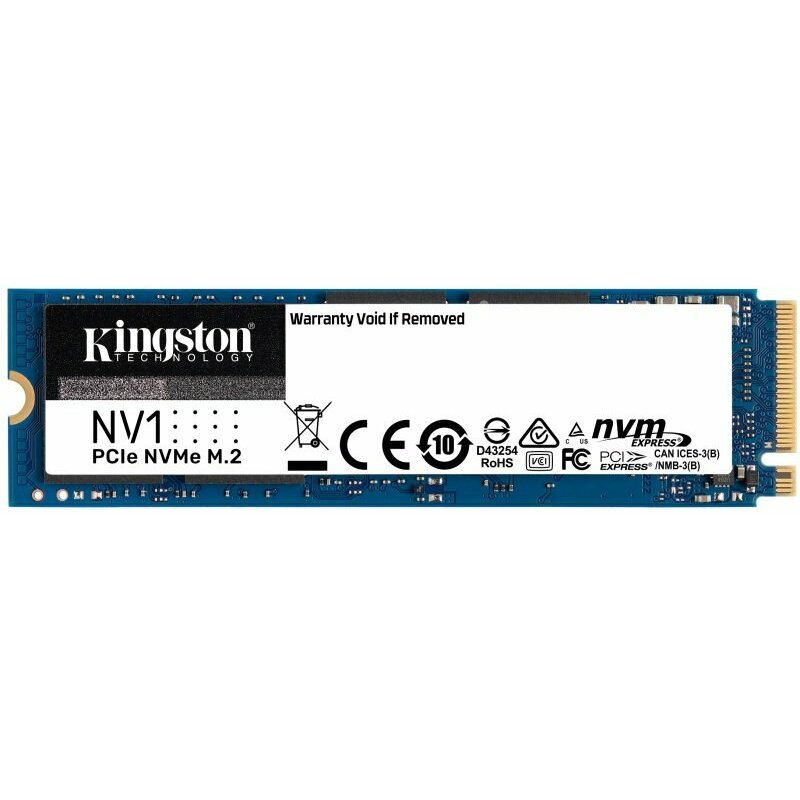

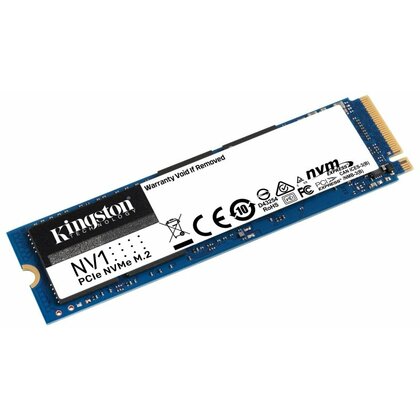

Kingston 1TB NV1 NVMe PCIe SSD
Device Type: Solid state drive - internal
Capacity: 1 TB
Form Factor: M.2 2280
Interface: PCI Express 3.0 x4 (NVMe) NVM Express (NVMe) M.2
Dimentions: WidthL 22 m, Depth: 80 mm, Height: 2.1 mm, Weight: 7 g
- Performance
SSD Endurance: 240 TB
Internal Data Rate: 2100 MBps (read) / 1700 MBps (write)
- Expansion & Connectivity
Interfaces: 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card
Compatible Bay: M.2 2280
- Power
Power Consumption: 5 mW (idle) ¦ 220 mW (average) ¦ 1.1 Watt (read) ¦ 3.3 Watt (write)
- Manufacturer Warranty
Service & Support Limited warranty - 3 years
- Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 70 °C
Min Storage Temperature -40 °C
Max Storage Temperature 85 °C
Vibration Tolerance (operating) 2.17 g @ 7-800 Hz
Vibration Tolerance (non-operating) 20 g @ 20-1000 Hz
