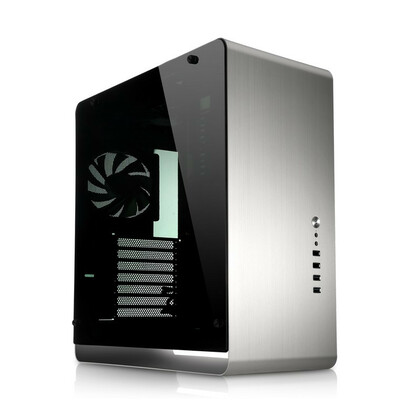

UMX4 SILVER/WINDOW MIDI TOWER CASE
With years of accumulated experience the Jonsbo team has created an outstanding case with the UMX4. It is constructed from an aluminum-magnesium alloy, which imparts a clean and metallic aesthetic. By combining an aluminum exterior with a steel interior, it perfectly fuse the strong structure and great aesthetics. Hidden cooling channels on the bottom and circular tool-less side plates show you the charm of endlessly innovative industrial design.
With fully tempered glass, the same as used by the automobile industry, the UMX4 provides wide-angle display for illuminated hardware, fully tempered glass brings an unexpected solution for isolating noise and resonance.
Color: Silver
Dimension:204MM (W) * 426MM (D) * 437MM (H)
Material:Body: Built with 2.0mm Aluminium alloy;Internal Structure: 1.0 mm SGCC steel; The side panel:made from 5mm tempered glass or 2mm aluminum plate
Motherboard:ATX,M-ATX,ITX
Drive Bay:2×3.5",4×2.5"
Cooling system:Back: 1×120 mm fan(built-in)
Power Supply:PSII (Modular or non-modular PSU which is shorter than 170mm)
CPU Cooler:Not higher than 162 mm
Display Card:Not longer than 310 mm
Front I/O Port:USB 3.0×2,USB 2.0×2,Audio×1,MIC ×1
Expansion Slot:7
Weight:Net 9.3kg/Gross 11.7kg
