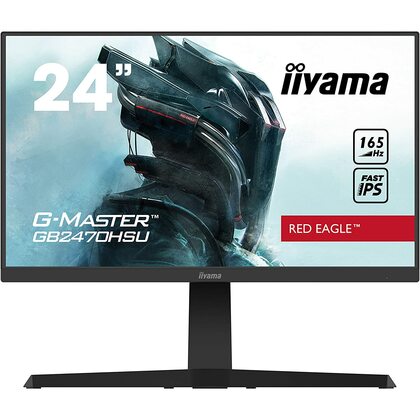

24" G-MASTER GB2470HSU-B1 1920X1080 IPS 165HZ 0.8MS FREESYNC WIDESCREEN GAMING MONITOR
iiyama G-Master GB2470HSU-B1 24" Fast (FLC) IPS LCD,165Hz, 0.8ms, FreeSync™ Premium , Full HD 1920x1080, 250 cd/m² Brightness , 1 x HDMI, 1 x DisplayPort, 2 x USB, 2 x 2W Speakers
Unleash your full gaming potential with the Fast IPS GB2470HSU Red Eagle
Get the competitive edge you need to unleash your full gaming potential with the 24’’ GB2470HSU offering 0.8ms MPRT and 165Hz refresh rate. Armed with FreeSync Premium you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality.
FAST IPS
The Fast IPS panel technology guarantees not only high-fidelity, vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.8ms Moving Picture Response Time (MPRT).
FreeSync™ Premium Technology
This monitor supports displaying HDR content and guarantees low input latency and low framerate compensation putting an end to any tearing or stuttering issues at virtually any framerate.
PREDEFINED AND CUSTOM GAMING MODES
Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memorize your own settings.
Black Tuner
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset in the headphone connector and enjoy!
Specification
TECHNICAL SPECIFICATION
DISPLAY CHARACTERISTICS
Diagonal 23.8", 60.5cm
Panel Fast IPS, matte finish
Native resolution 1920 x 1080 @165Hz (2.1 megapixel Full HD, DisplayPort)
Aspect ratio 16:9
Brightness 250 cd/m² typical
Static contrast 1100:1 typical
Advanced contrast 80M:1
Response time (MPRT) 0.8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit
Horizontal Sync 15 - 225kHz
Vertical Sync 48 - 165Hz
Viewable area W x H 527 x 296.5mm, 20.7 x 11.7"
Pixel pitch 0.275mm
Colour matte,
INTERFACES / CONNECTORS / CONTROLS
Signal input HDMI x1 (max. 1920 x 1080 @144Hz)
DisplayPort x1 (max. 1920 x 1080 @165Hz)
USB HUB x2 (v.2.0 DC5V, 500mA)
HDCP yes
Headphone connector yes
FEATURES
Blue light reducer yes
Flicker free yes
FreeSync support DP: 1920 x 1080 @165Hz, HDMI: 1920 x 1080 @144Hz
HDR yes (HDR ready)
OSD languages EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
Control buttons Signal select/ Exit, +/ Volume, -/ i-Style Colour, Menu, Power
User controls picture adjust (contrast, brightness, overdrive, ACR, ECO, blue light reducer, Black Tuner, MBR, gamma), input select, audio adjust (volume, mute), store user settings, colour settings (colour temperature, 6-Axis, user preset), image adjust (i-Style colour, X-Res Technology, sharp & soft, HDMI RGB range, direct drive mode, video mode adjust), language, setup menu (OSD H. position, OSD V. position, OSD time out, opening logo, AMD FreeSync Premium, LED), display information, reset
Speakers 2 x 2W
Convenience Kensington-lock™ prepared, DDC2B, Mac OSX
MECHANICAL
Display position adjustments height, tilt, pivot (rotation both sides)
Height adjustment 130mm
Rotation (PIVOT function) 90°
Tilt angle 18° up; 3° down
VESA mounting 100 x 100mm
Cable management system yes
ACCESSORIES INCLUDED
Cables power, USB, HDMI, DP
Other quick start guide, safety guide
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 20W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, VCCI, REACH
Energy efficiency class A+
Other REACH SVHC above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D 539.5 x 395(525) x 256mm
Box dimensions W x H x D 697 x 413 x 198mm
Weight (without box) 4.4kg
Weight (with box) 6.4kg
EAN code 4948570117734
EU ENERGY EFFICIENCY LABEL
Manufacturer iiyama
Model G-Master GB2470HSU-B1
Energy efficiency class A+
Visible screen diagonal 61cm; 23.8"; (24" segment)
ON mode power consumption 18.6W
Annual energy consumption 27kWh/annum*
Power in Standby 0.5W stand by
Power in OFF Mode 0.3W off mode
Resolution 1920 x 1080
