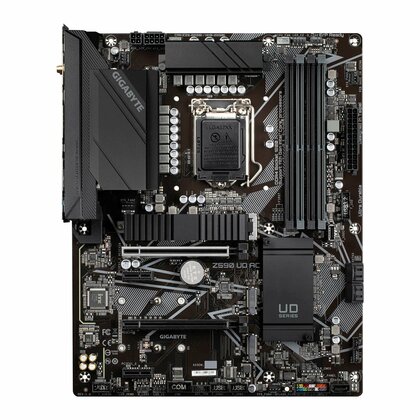

Gigabyte Z590 UD AC ATX Motherboard
Features
• Supports 11th and 10th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
• Shielded Memory Routing for Better Memory Overclocking
• Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact
• Fast 2.5GbE LAN with Bandwidth Management
• Onboard Intel® 802.11ac Wireless & BT with High-Gain Antenna
• Triple Ultra-Fast NVMe PCIe 4.0x/3.0 x4 M.2 with Thermal Guard
• USB 3.2 Gen2 and Front USB Type-C® for Fast and Versatile Connections
• Pre-installed IO Shield for Easy and Quick Installation
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Digital PWM Controller to deliver appropriate voltage to the CPU.
Direct 12+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 600 Amps current in total.
All-solid capacitors to improve Transient response and minimize oscillation.
8+4 Solid Pin CPU Power Connectors.
Support for DDR4 XMP Up to 4800MHz and Beyondx
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
RGB FUSION 2.0
With Z590 UD AC Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.x RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED
