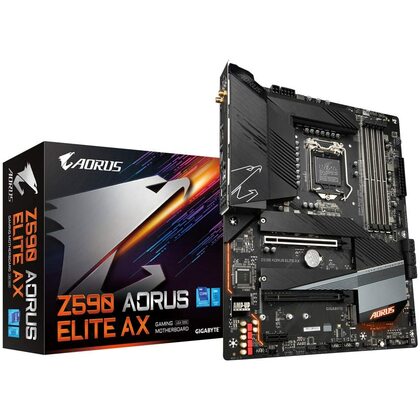

Gigabyte Intel Z590 AORUS ELITE AX ATX Motherboard
Key Features
• Supports 11th and 10th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
• Shielded Memory Routing for Better Memory Overclocking
• Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
• Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
• AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
• Fast 2.5GbE LAN with Bandwidth Management
• Triple Ultra-Fast NVMe PCIe 4.0x/3.0 x4 M.2 with Thermal Guards
• SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
• Pre-installed IO Shield for Easy and Quick Installation
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
DIRECT POWER DESIGN
Z590 AORUS ELITE AX motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100. digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard`s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU.
Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help
