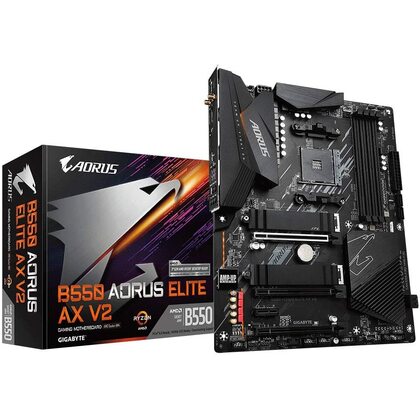

Gigabyte B550 AORUS ELITE AX V2 ATX Motherboard
Features
• Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 12+2 Phases Digital Twin Power Design with 50A DrMOS
• Advanced Thermal Design with Enlarged Surface Heatsinks
• Ultra Durable™ PCIe 4.0 x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
• Onboard Intel® WiFi 6 802.11ax 2T2R + BT5 with AORUS Antenna
• AMP-UP Audio with ALC1200 and WIMA Capacitors
• Blazing Fast 2.5GbE LAN with Bandwidth Management

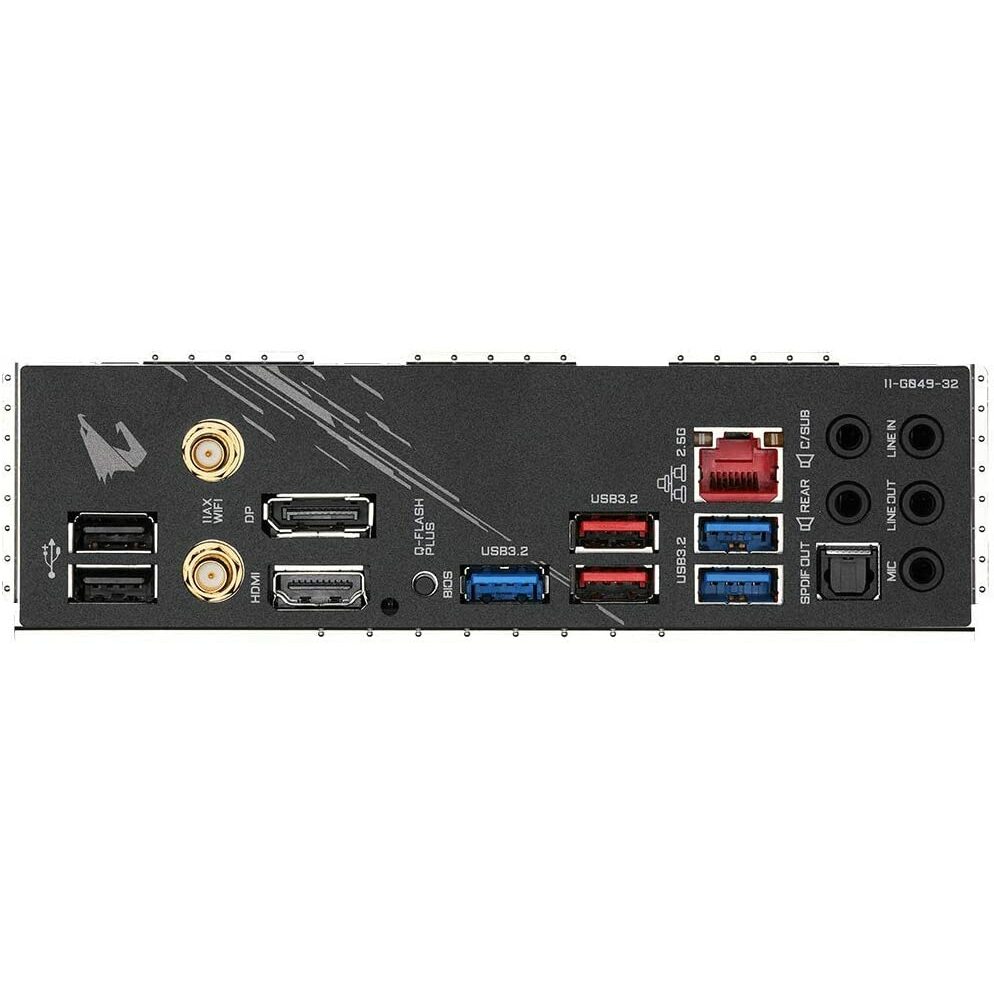

• Front USB 3.2 Gen1 Type-C™ and DisplayPort + HDMI for Multiple Display
• RGB FUSION 2.0 Supports Addressable LED + RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation
12*+2 Phases Digital Twin Power Design
Digital PWM Controller delivers appropriate voltage to the CPU
With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a totalAll-solid capacitors to improve Transient response and minimize oscillation
24pin+8pin Solid Pin CPU Power Connectors
B550 AORUS ELITE AX V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard`s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.
UNPARALLELED PERFORMANCE
GIGABYTE realize that customer won`t stop chasing a better computing performance. We take care of it and implement on products. Protec
