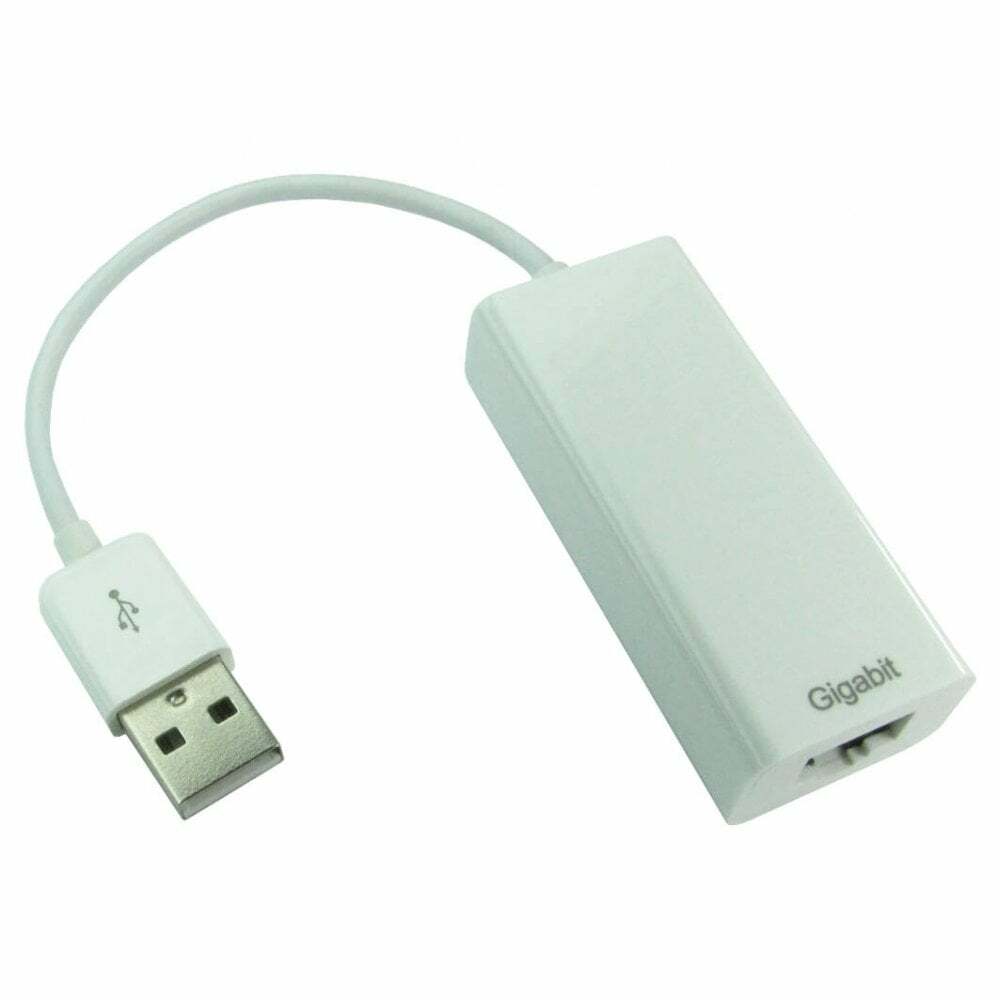

The Gigabit USB 2.0 Ethernet adapter converts a USB port into a 10/100/1000 Base-T Ethernet port. It enables low cost and affordable Gigabit Ethernet network connection to any PC, laptop or embedded system by using your existing USB ports.
Integrates on-chip USB 2.0 PHY and controller compliant to USB Spec 2.0, and 1.1
Supports USB Super/High/Full Speed modes with Bus-power Self-power device auto-detect capability
Supports IEEE 802.3, 802.3u and 802.3ab
Supports parallel detection and automatic polarity correction
Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading
Supports TCP Large Send Offload V1
Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
Supports IEEE 802.1P Layer 2 Priority Encoding and Decoding PHY loop-back diagnostic capability
Supports Wake-on-LAN Function
Supports suspend mode and remote wakeup via link-change, Magic Packet, Microsoft Wakeup Frame and external wakeup pin
Supports Windows 10, Windows 8, Windows 7, Apple 10.6 and Apple 10.8
