DisplayPort is a 20 pin connector similar to HDMI but designed to replace DVI/VGA. The standard was put forward by VESA to define a new royalty free audio/video connection.

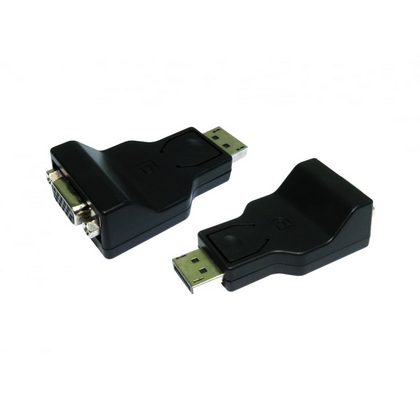

The DisplayPort to VGA adapters are the perfect solution for adapting your DisplayPort computer or graphics card to use a VGA monitor/device.
Due to restrictions of VGA this adapter cannot carry audio.
DisplayPort Male (20 pin) to VGA Female (15 pin)
DisplayPort v1.1 compliant
Embedded clock architecture to reduce EMI susceptibility
Supports resolutions greater than QXGA (2048 x 1536) at 24-bit colour depths
Supports existing VESA and CEA standards
Supports hot plug detection as well as link status failure
Supports a minimum of 1080P resolution at 24bpp, 50/60 Hz at 15 metres
Supports Display Port signal to VGA signal
Supports video bandwidth up to 10.8Gbps
Connector : 20pin Display Port to 15pin VGA
