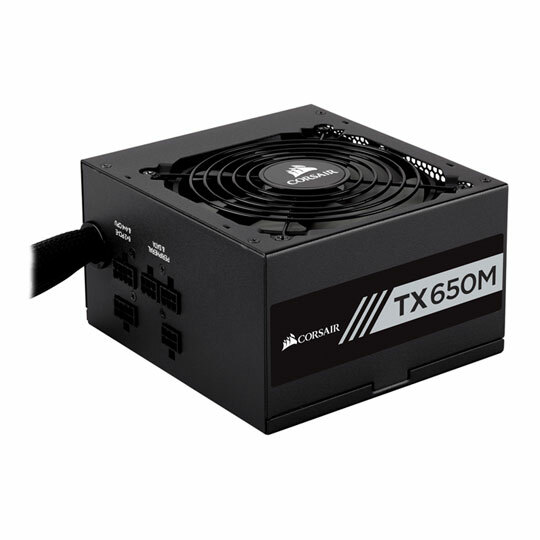

The CORSAIR TX-M Series power supplies give you extremely tight voltage regulation and a semi-modular cable set. With all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat and together with the rifle bearing fan yields virtually silent operation.
-50 Degree C Operating Temperature: Can output full power even at very high ambient temperatures
-80 Plus Gold: Runs cooler and uses less power than less efficient power supplies
-Semi-Modular: Allows user to only use the cables they need for a cleaner looking build with better airflow
-Backed by CORSAIR’s legendary technical support and customer service
-All Japanese Capacitors: Unparalleled reliability, even at higher operating temperatures
| Size | ATX |
| Edition | TX650 |
| Wattage | 650 W |
| 80 PLUS Certification | 80 PLUS Gold |
| Max. Efficiency (at 230Vac) | 90 % |
| Cooling | Fan |
| Fans | 1 x 120mm |
| Internal +12V Rails | Single Rail |
| Rail 1 +12V | 51 A |
| Rail 2 +12V | N/A |
| Rail 3 +12V | N/A |
| Rail 4 +12V | N/A |
| Rail 5 +12V | N/A |
| Rail 6 +12V | N/A |
| Max. Combined Output +12V | 51 A |
| Modular | Yes |
| Modularity | Hybrid Modular |
| SLI/CrossFire | No |
| EPS 12V | Yes |
| Motherboard Connector | 20+4-pin |
| Connectors |
|
| Dimensions | 150 x 86 x 140 (WxHxD) |
| Package Type | Retail |
