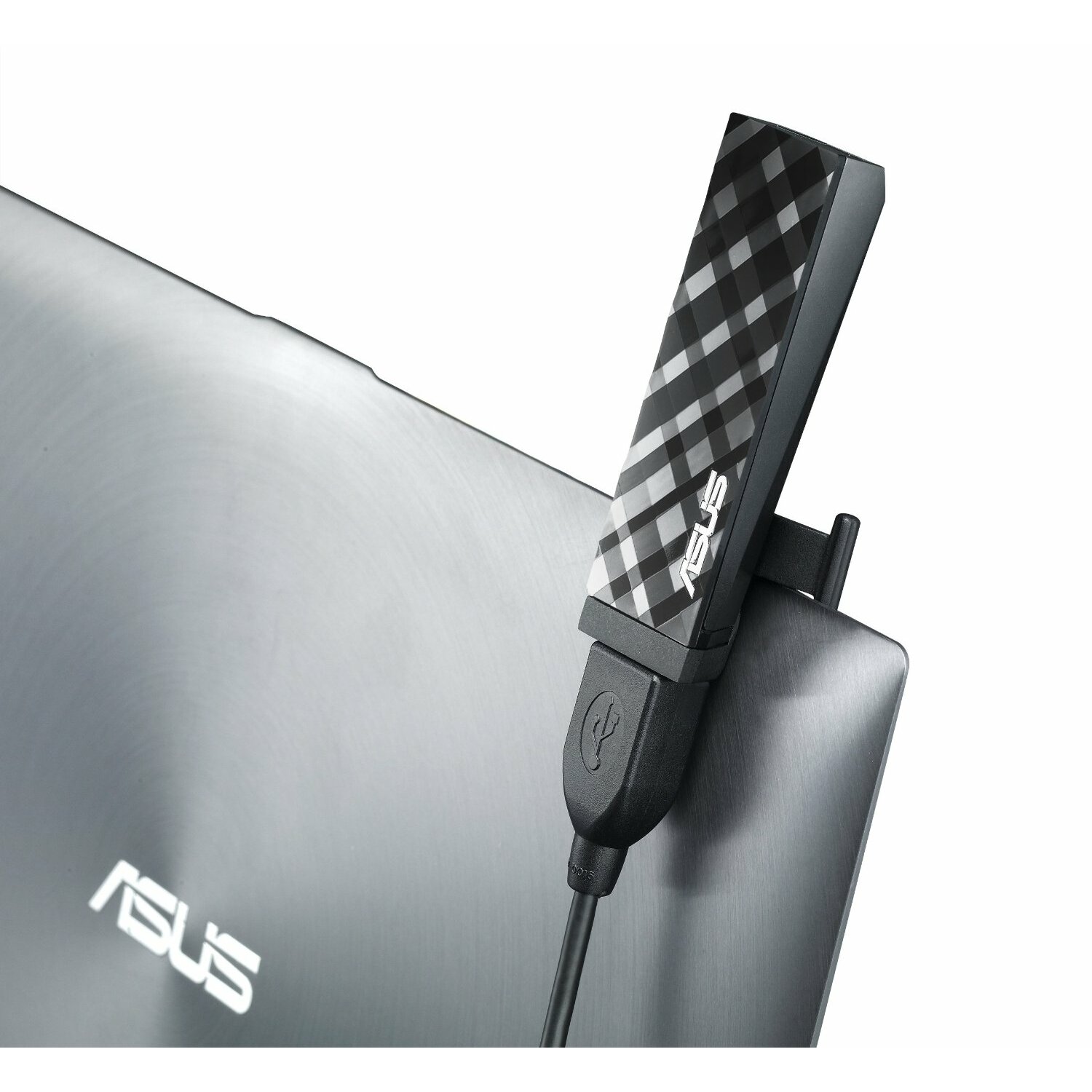

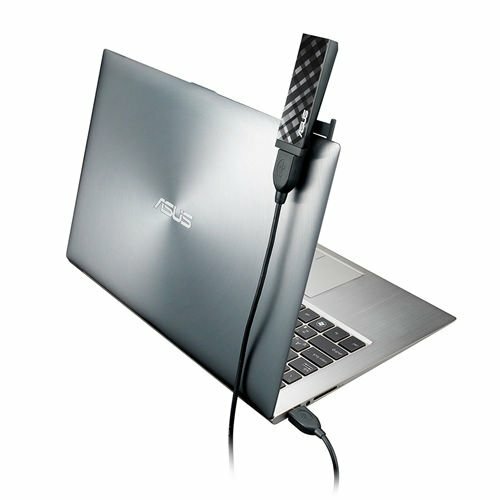

The ASUS USB-N53 is a dual-band USB adapter that provides flexible dual-band connection for lag-free streaming and high performance networking. It also has a superior antenna design for extensive wireless coverage. With the bundled USB cable, you can flexibly adjust the antenna to receive the strongest signal. A friendly user interface utility allows you to install and use the application easily, making the USB-N53 a fantastic router both at home and on the road.
Network Standard
IEEE 802.11 a/b/g/n
Interface
USB 2.0
Antenna
2 x on-board PCB antenna
Operating Frequency
2.4GHz/2.4G~2.4835GHz /5.1~5.8GHz
Operation Channel
11 for N. America, 13 Europe (ETSI)
Data Rate
802.11 a/b/g/n : downlink up to 300Mbps, uplink up to 300Mbps(20/40MHz)
Output Power
b mode : 18.5 ~21.5 dBm
g mode : 16.5 ~19.5 dBm
n mode : 16.5 ~19.5 dBm
a/n mode : 12.5 ~15.5 dBm
Modulation
64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK, OFDM
Utilities
Mobile control center, Wireless setting, Mobile manager, Site survey, WPS Wizard
Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
Certificates
CE, FCC, C-Tick, IC, NCC, Wi-Fi
Dimensions
96 x 26 x 12.45 mm (LxWxH)
Weight
20 g (Device Only)
Environmental
Operating Temperature: 0 °C to 40 °C ( °F to ºF)
Storage Temperature: -10 ° to 70 ° C ( °F to °F)
Operating Humidity: 15 % to 95 % (Non-condensing)
Storage Humidity: 15 % to 95 % (Non-condensing)
OS Support
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Package Content
Support CD
Warranty card
