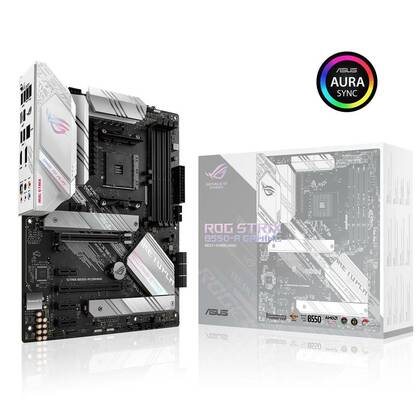

ROG STRIX B550-A GAMING (AMD AM4) B550 ATX MOTHERBOARD
AMD B550 RYZEN AM4 GAMING ATX MOTHERBOARD WITH PCIE® 4.0, TEAMED POWER STAGES, INTEL® 2.5GB ETHERNET, DUAL M.2 WITH HEATSINKS, SATA 6 GBPS, USB 3.2 GEN 2 AND AURA SYNC RGB
AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header
Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
SPECIFICATION:
CPU - Supports AMD AM4 Socket Ryzen™ 3000 and 5000 Series Desktop Processors
xNot compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset AMD B550
Memory 4 x DIMM, Max. 128GB
DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/
3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Onboard Graphics Outputs 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
xGraphics specifications may vary between CPU types.
PCI Slots 1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Storage 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
Networking Intel® I225-V 2.5Gb Ethernet
Audio ROG SupremeFX 8-Cha
