Aerocool Aero Bronze 750W PSU
Featuring best in class protections and impressive performance while offering one-of-a-kind affordability, the AERO PSU series is perfect for DIY PC builders who want a feature-packed power supply without breaking the bank.
The AERO BRONZE is 80Plus Bronze 230V EU Certified for up to 90%+ efficiency, delivering maximum efficiency performance.
Premium Bronze power supply with efficiency performance rivaling that of 80Plus Silver 230V EU PSUs
Up to 90%+ efficiency with 80Plus Bronze 230V EU certified
DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions
Built-in premium 105°C Japanese main capacitors provide low ripple and higher durability
High-end solid state capacitors provide great DC output quality for improved noise filtering and low ripple

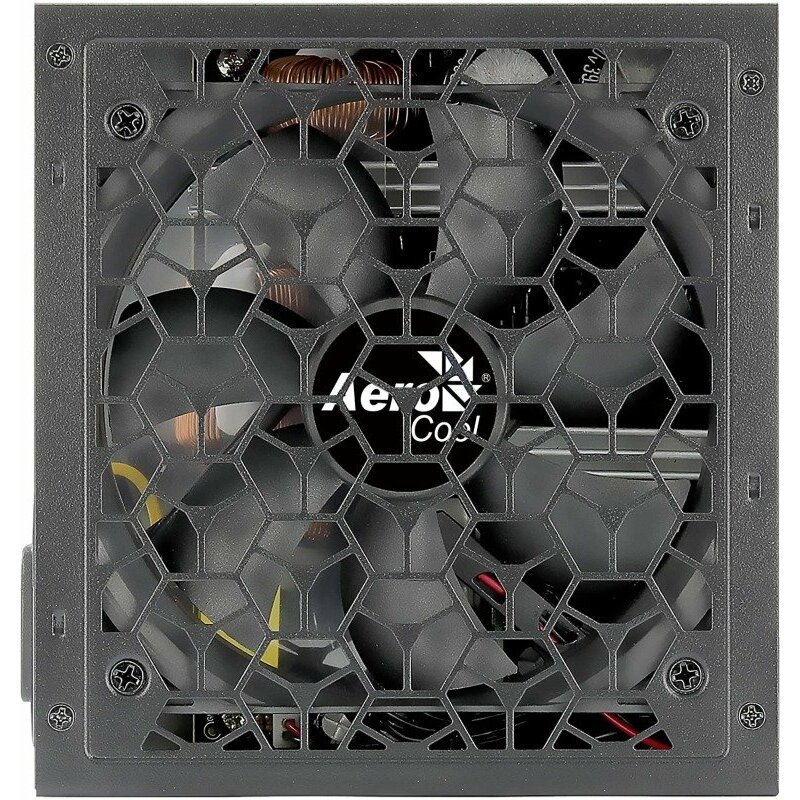

12cm high-pressure fan with optimized fan speed allows for near inaudible fan noise and silent PSU operation
Best in class protections makes PSU highly resistant to damage: OVP, UVP OPP, SCP, OCP, Input Surge & Inrush Protection, and OTP
Compliant with ErP 2013 Lot 6 for high energy efficiency and EMC compliant
Technical Specification
Aerocool Aero Bronze 750W PSU
General
Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V 2.52
PSU Form Factor ATX
Colour Matte black
Power Device
Input Voltage AC 200-240 V
Frequency Required 47 - 63 Hz
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Output Voltage +3.3, +5, ±12 V
Power Capacity 750 Watt
Output Current +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Efficiency 90%
Power Factor (PF) 0.9
80 PLUS Certification 80 PLUS Bronze
Miscellaneous
Cooling System 120 mm fan
Features S
