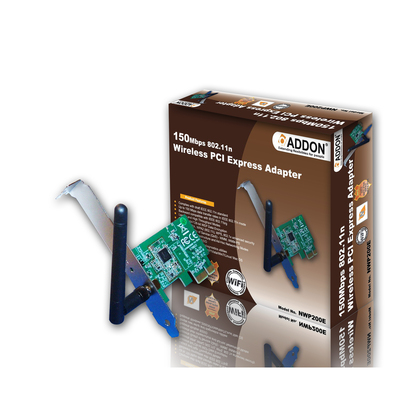

NWP200E is an 11n Wireless PCI Express Adapter that delivers unrivaled wireless performance for your Desktop PC. It complies with IEEE 802.11n draft standard and backward compatible with IEEE 802.11b/g. With this adapter, you can easily upgrade your Desktop PC wireless connectivity. Once connected, access the network with high-speed Internet connection while sharing photos, files, music, video, printers, and storage. Get a better Internet experience with a faster wireless connection so you can enjoy smooth digital phone calls, gaming, downloading, and video streaming. NWP200E also provides peer-to-peer communication among any compatible wireless users and no Access Point required. NWP200E provides maximum transfer rate up to 150Mbps and supports WEP, WPA, WPA2, WPS, 802.1x high-level WLAN security features that guarantee the best security for users.
•Data Transfer Rates 11Mbps (11b mode), 54Mbps (11g mode), 150 Mbps (11n mode )
•Standard IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
•Operating Radius Indoor: 200m, Outdoor: 400m
•Radio Technology
IEEE 802.11g/11n Orthogonal Frequency Division Multiplexing (OFDM)
IEEE 802.11b Direct Sequence Spread Spectrum (DSSS)
•Interface x1 PCI Express 2.0
•Modulation Schemes DBPSK/DQPSK/CCK/OFDM
•Bandwidth 20MHz / 40MHz
•Roaming Full mobility and seamless roaming from cell to cell
•Antenna 1 Dipole Antennas
•Media Access Protocol CSMA/CA with ACK
•LED Indicators ACT
•Operating Frequency /Channel
Range:2.4GHz~2.4835GHz
FCC:1~11 Channels
ETSI:1~13 Channels
•Receiver Sensitivity
11Mbps : -86dBm @ 8% PER
54Mbps : -74dBm @ 10% PER
11n(20MHz) : -72dBm ; 11n(40MHz) : -70dBm @ 10% PER
•Transmit Output Power 11b : 18dBm (+-1dBm), 11g : 15dBm (+-1dBm) , 11n(20M/40M) : 14dBm (+-1dBm)
•Power Consumption
Rx : Max 0.74W at 802.11n Mode
Tx : Max 0.53W at 802.11n Mode
Max 0.44W at Link/Standardby Mode
•Working Mode Infrastructure, Ad-Hoc
