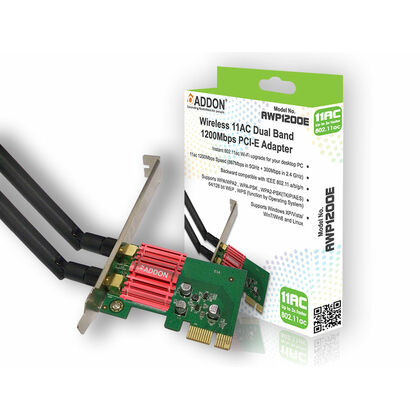

AWP1200E Wireless AC Dual Band 1200Mbps PCI-E Adapter
Addon AWP1200E is a wireless dual band 1200Mbps adapter that provides PCI Express interface and is fully in compliance with IEEE802.11ac and IEEE802.11a/b/g/n dual band standards ( 2.4 G and 5G ).
The wireless transmission rates can reach up to 867Mbps in 5G mode and 300Mbps in 2.4G mode. It connects your desktop computer to a high-speed Wi-Fi network, experiencing faster files transmission and internet browsing.
When AWP1200 works in 11AC 5G mode, users can enjoy high performance gaming programs including HD multimedia with 3 time faster speed than previous generation 11N. This Desktop 11AC dual band PCI-E Adapter is the best choice for the desktop computer users who want to enjoy a better wireless performance and high-speed Wi-Fi network.
Features:
- Complies with IEEE 802.11ac, IEEE 802.11n and IEEE 802.11a / b / g standards
- Supports PCI-E 1.1 X1 bus
- Supports IEEE802.11n 2.0 and IEEE 802.11ac standard, 300Mbps and 11ac 867Mbps TX / RX rates
- Support WPA and WPA2 to safeguard wireless network access security
- Supports 20MHz / 40MHz / 80MHz bandwidth
- Supports IEEE802.11e QoS Enhancement (WMM)
- Supports IEEE802.11h TPC
- Supports WAPI certified
- Supports Cisco CCS
- Supports multiple BSSID
Specifications:
Model
AWP1200E
Standards
IEEE802.11ac, IEEE802.11n, IEEE802.11b, IEEE802.11g, IEEE802.11a
PCI Bus
PCI EXPRESS X1
Transmission Rate
802.11n: 2.4G 300Mbps Max
802.11ac: 5G 867Mbps Max
Transimit and receive type
2T2R
Transmit Power
20dBm (MAX)
SensitivityPER
5G_11ac
VHT80M_MCS8: -55dBm @ 10% PER
HT40M_MCS7: -63dBm @ 10% PER
HT20M_MCS7: -66dBm @ 10% PER
11N_2.4G
HT40M_MCS7: -67dBm @ 10% PER
HT20M_MCS7: -69dBm @ 10% PER
OFDM_54M: -72dBm @ 10% PER
11b_11M: -85dBm @ 10% PER
Data modulation mode
OFDM / CCK / 16-QAM / 64-QAM / 256-QAM
Antenna
2 * 2dBi detachable antennas
LED
Wlan: Link / Act
